The one and only machine in the world to fabricate lines and spaces under 100µm (FP-21T Series)

Since high-frequency characteristics is necessary for RF circuit boards, it is important to
mill sharp edged lines and spaces as below

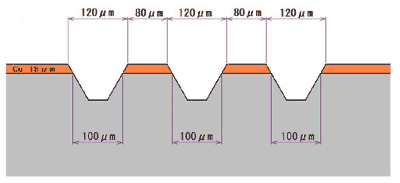

However, the lines and spaces milled by average prototyping machine with 60 degrees
milling cutter (without run-out in consideration) will result to the picture below;
un-perpendicular cutting edge, which is inadequate for RF circuit boards.

Reason why FP-21 series are capable

Holds necessary tools to fabricate

HF Milling bit

0.1mm
0.15, 0.2, 0.3, 0.5mm

Low runout of the spindle motor

FP-21T

------

within 25µm

Capable of Stepping fabrication

Reason why competitor's machines are incapable

They don't own adequate tool bit

End Mill (RF)

36mm, d=0.15mm (6mil)
36mm, d=0.25mm (10mil)
36mm, d=0.40mm (16mil)

Runout of the spindle motor is not specified

Incapability of Stepping fabrication

Introduction Example

FP-21T / FP-21THP

	Mr.John Suhr / Suhr Guitars FP-21T With my MITS router the door of creativity has opened up...Read more>>
	Musen service Ltd. FP-21T Introduction example

Please see for introduction examples.

FP-21T Precision

Professor Dr. Antonije Djordjevic / University of Belgrade FP-21T Precision
Besides achieving a significant step-up in the quality of manufacturing of microwave printed-circuit boards, we have...Read more>>

More features of FP-21T series

FP-21T / FP-21THP

Performs spacing of 0.1mm or more in milling
precision.

With having 30mm in Z-axis stroke, it enables to
process thick materials.
By using the optional vacuum table, it enables to
process thin materials (200µm minimum).
The machine can process PCB larger than its working
area (maximum 2000 mm), in Y-axis, using the software.
Compatible with various materials other than substrates, 2.5 Dimensional work and additional work.
Process methods, absolute and incremental, are easily changeable manually.
With FP-21THP (air floatation model), the material is
processed without contact, leaving no markings or
scratches: which is suitable for flexible materials
such as Teflon.

>>Samples

FP-21T Precision

An Extreme precision machine which performs 50µm spacing. Optimal for microwave designs.

Non-contact spindle head installed.
Process methods, absolute and incremental, are easily changeable manually.
By using the optional vacuum table, it enables to process thin materials (50µm minimum).
Telecentric lense installed camera 60x (optional).

PCB surface detection jig (optional).

>>Samples
