Easy-to-use package for creating artwork, especially high-frequency
patterns.
DXF file and Closed Boundary
Version Upgrade Information
|
Docking
with PCB CAD packages of other manufacturers
|
|

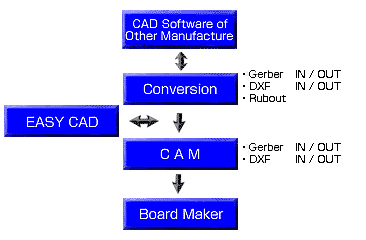

Software Chart
|
|
|
|
|
Converter + CAM (Software supplied with Board
Maker)
|
- Converter
- Converts Gerber, DXF
- Automatically generates converted pattern
data into data that can be used by the board maker
- CAM
- Program for controlling the board maker
|
EASY CAD (Option)
|
- EASY CAD, developed
by MITS, is an easy-to-use CAD package for designing and
producing printed boards. It uses an intuitive design-by-hand
interface.
- Users can create original artwork patterns
for printed boards
- Patterns created in host CAD systems
can be imported and edited in EASY CAD
|
Correct DXF (Option)
|
Correct DXF is able to modity the DXF
file with unclosed loop into unicursal data.
-
|
PC Specifications
|
- OS: Windows 2000 (SP4) /
XP Home (SP2) / XP Pro (SP2) /
Vista
* Not supported on 64-bit OS
- Interface with board maker: RS-232C, USB
|
|
|
