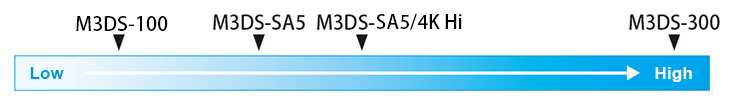

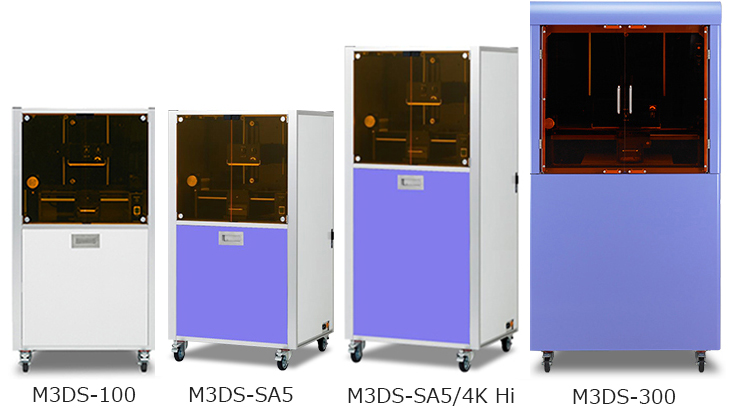

Lineups

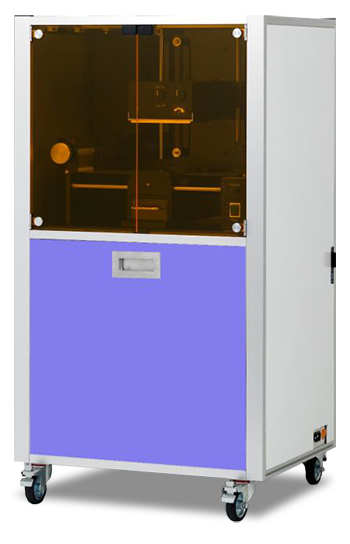

M3DS-SA5


Support Shore A2 rubber-like resin. Print various softness from earlobe to hard plastic.
Specifications
M3DS-SA5
Features Floor-standing Type / Coater System
Maximum printing size
(X Y Z mm)
150 x 100 x 170
layer thickness (mm) 0.025, 0.05mm (Switching by software)
X Y resolution (mm) *1 0.15
Maximum printing speed
(mm / h)  *2
20 (with layer thickness of 0.05mm)
Printing direction Vertical lifting
Available Materials Shore A2 Rubber-like Resin, Shore A5 Rubber-like Resin, Shore A13 Rubber-like Resin, Shore A50 Rubber-like Resin, Rubber-like Resin, Heat Resistant Acrylic resin, Conductive acrylic resin, Conductive rubber-like resin, Lost wax resin
Light source LED & laser hybrid, over 8mW/cm2, 3000 lumen
Printer size (WxDxHmm) 620mm x 500mm x 1140
Printer weight (kg) Approx. 50
Power supply /
Power consumption@
AC100V, 50/60Hz, 500W
Note Adjustable Coater Speed


M3DS-SA5/4K Hi @NEW


Fine resolution with 4K projector.
Support Shore A2 rubber-like resin. Print various softness from earlobe to hard plastic.

Thanks to 4K Projector light engine, XY resolution is 25 µm in M3DS-SA5/4K Hi (compared to 150 µm in M3DS-SA5). It help to get smooth edge of model as shown in the illustrations below.

Comparison
    At 100x magnification

M3DS-SA5


Edge gets jagged with pixel


M3DS-SA5/4K Hi


Smoother edge


Specifications
M3DS-SA5/4K Hi
Features Floor-standing Type / Coater System
Maximum printing size
(X Y Z mm)
96x 54 x 170
layer thickness (mm) 0.025, 0.05mm (Switching by software)
X Y resolution (mm) *1 0.025
Maximum printing speed
(mm / h)  *2
20 (with layer thickness of 0.05mm)
Printing direction Vertical lifting
Available Materials Shore A2 Rubber-like Resin, Shore A5 Rubber-like Resin, Shore A13 Rubber-like Resin, Shore A50 Rubber-like Resin, Rubber-like Resin, Heat Resistant Acrylic resin, Conductive acrylic resin, Conductive rubber-like resin, Lost wax resin
Light source LED & laser hybrid, over 8mW/cm2, 5000 lumen
Printer size (WxDxHmm) 700mm x 500mm x 1700
Printer weight (kg) Approx. 60
Power supply /
Power consumption@
AC100V, 50/60Hz, 600W
Note Adjustable Coater Speed
*1 It is possible to raise XY resolution further by narrowing with lens
*2 This modeling speed is when the layer pitch of 0.05mm. Also, it depends on the type of resin.
Note) Please do not install 3D printer near the window where the printer is exposed with sunlight. Resin will be cured.
