XY resolution is a size of 1 pixel for the projector. In general, if this value is smaller, smaller feature can be printed more precisely. However, printing size in XY dimensions gets smaller.
Layer thickness is basically fineness of Z direction (height direction), and in general, smaller this value is, surface of the printed object gets finer and smooth. However, overall printing time gets longer

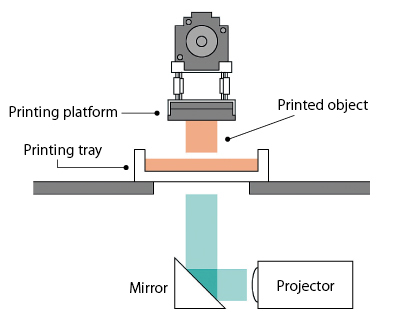

Putting liquid resin into tray in about 5mm depth, and platform is lifted vertically once while cured, then put down, and this sequence is repeated. When printing soft objects, during lifting and putting into tray, objects shakes a little bit.

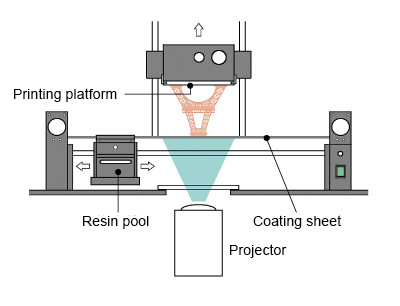

Coater system improved this disadvantage.
Before curing, resin for one layer is coated
on the coating sheet. The projector radiates
image for the layer and the layer is cured.
The next step is peeling which the cured
resin is peeled off the sheet. Lifting platform,
coating resin, curing and peeling. These
process is repeated until print is finished.
Resin pool is moving left and right during
print in order to coat resin and peel off the

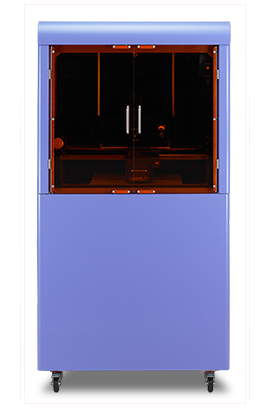

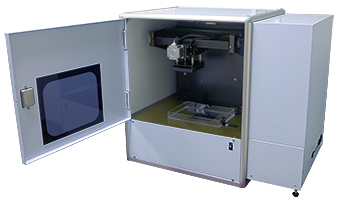

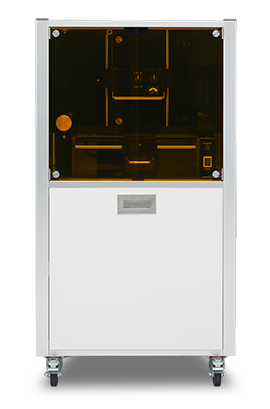

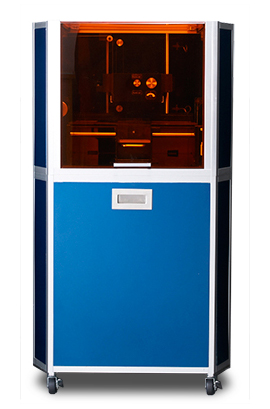

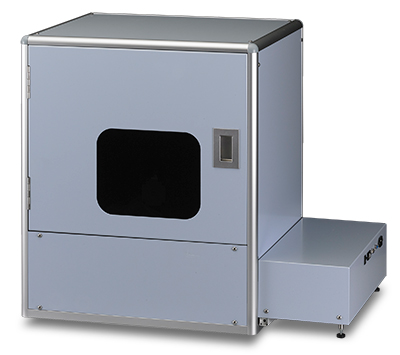

FLASH75 and M3DS adopt vertical lifting system. Light is projected through bottom of resin tray for FLASH75, and from under the printing sheet through the sheet for M3DS, the UV light cures 1 layer of resin, and platform is lifted through the process. Printed objects are hung upside-down from platform.
Many stereolithographic 3D printers put resin into resin pool at least the depth as deep as the height of the object intended to be printed. Platform will be submerged into the pool through the printing process. UV light is radiated on the surface of the resin to cure. Once the layer is cured, platform sinks down by one layer to form another layer on top of the layer just cured.
